Contains defines controlling the Windows DLL export and import of symbols. More...

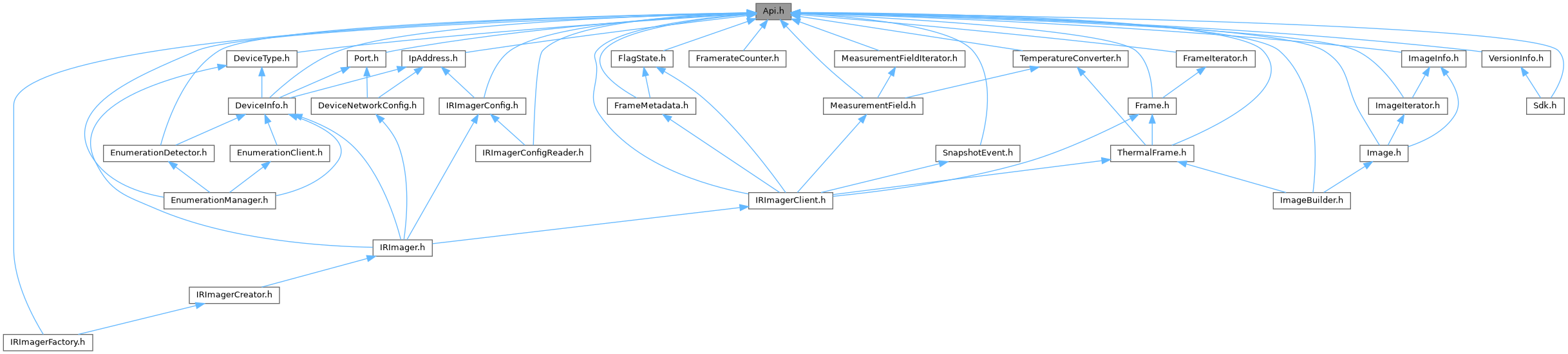

This graph shows which files directly or indirectly include this file:

Macros
#define	OTC_SDK_API
	Only needed when working with Windows DLLs.

#define	OTC_SDK_EXTERN
	Only needed when working with Windows DLLs.

#define	OTC_SDK_C_CALL
	Only needed when working with Windows DLLs.

Detailed Description

Contains defines controlling the Windows DLL export and import of symbols.

Author: Optris GmbH Co. KG

Date: 2024-12-19

The following defines are used to mark classes, structs or functions as the public API accessible in Windows DLLs.

For a symbol to be accessible in a Windows DLL its source has to be marked with __declspec(export) when compiling the library. On the other hand, when you want to build against the dynamic library the same resources must be marked with __declspec(import) to signal to the toolchain that its implementation has to be imported from that library.

In order to use the same header files for building the dynamic library and for building against it the preprocessor define logic below was established. It covers the following cases:

Building a dynamic library on Windows (DLL) IR_DIRECT_SDK_EXPORT must be defined so that the marked resources appear as accessible symbols in the generated DLL.
Building against the dynamic SDK library (DLL) Nothing needs to be defined. The logic below ensures that all marked resources are imported from the Windows (DLL)
Building a static library on Windows (LIB) OTC_SDK_STATIC must be defined to that none of the marked resources receive special modifiers. They are unnecessary for a static library.
Building against the static library (LIB) OTC_SDK_STATIC must be defined to that none of the marked resources receive special modifiers. If using CMake to build against the SDK this define is automatically set.
Linux On Linux nothing needs to be defined for all the cases above. Its format for dynamic libraries does not require the same attention.
