Linux

User Groups

My SDK application can not access the data stream from the device.

Check, if you as a user are part of the video group:

groups

If this is not the case, add yourself to this group:

sudo usermod -a -G video <username>

Note: You need to log out and in again for the group changes to take effect.

UVC Driver Settings

For some devices passing the nodrop option to the UVC kernel driver may prove helpful. You can temporarily activate this option with the following command:

sudo rmmod uvcvideo; sudo modprobe uvcvideo nodrop=1

Alternatively, the parameter can be modified via the sysfs (this is also not permanent):

sudo bash -c 'echo -n 1 > /sys/module/uvcvideo/parameters/nodrop'

Note: The changes above are not permanent. They are reset after a reboot.

If you find this option helpful, you can activate it permanently by creating the following file:

sudo bash -c 'echo "options uvcvideo nodrop=1" > /etc/modprobe.d/uvcvideo.conf'

No device found

When I start my SDK application I get the following error message although my device is plugged into the USB port:

No device found.

It does not even show up when I use the tool otc_find_devices.

You can run into this situation when you are using a Xi 80, a Xi 410(MT) or a Xi 1M via USB on Linux. It happens when a SDK application is shutdown abruptly, for example, with Ctrl + C or by killing it in a task manager. This prevents the SDK from properly releasing its resources. As a result, the Linux kernel thinks that the device is still in use and subsequently refuses any attempt to connect to it.

The only way to remedy this issue is to plug the device out and in again. You can avoid this problem by ensuring that the SDK can shutdown gracefully. This can be achieved by either calling IRImager::disconnect() or by making sure that yor IRImager object is destroyed before the application exits.

False Color Images

Unexpected Colors

The false color image does not seem to use the ColoringPalette that I specified.

Check, whether you specified the correct ColorFormat when instantiating the ImageBuilder. Refer to the API documentation of the ColorFormat enum for more details.

Effect of a wrong ColorFormat on the ColoringPalette Iron (left: correct, right: faulty).

Tearing

The false color image I generated exhibits tearing and lines.

Check, whether you specified the correct WidthAlignment when creating the ImageBuilder. Refer to the API documentation of the WidthAlignment enum for more details.

Effect of a faulty WidthAlignment on a false color image.

Video Stream

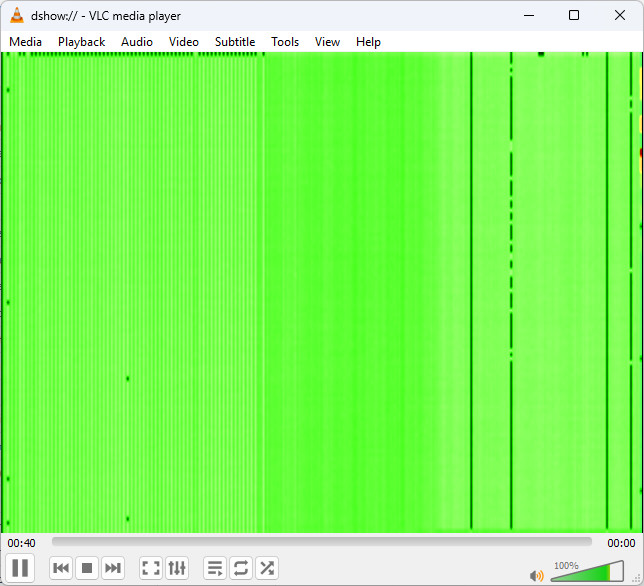

When I connect my thermal camera to my computer via USB it appeared as a video capture device. When I tried to open it with a program like VLC media player I only got green noise like this:

Data stream from a PI640.

Nothing is wrong. The player just visualizes the raw data. Its needs processing by the SDK in order to become usable.

Wait a minute I did not even get that far. The device shows up as a capture device but I can not open it.

This happens with Xi 80, Xi410(MT) and Xi 1Ms on Linux. The reason for this is the USB transfer mode used by these devices. For more detailed information please refer to the Streaming section in the Device Communication chapter.

I am still puzzled: The frames in the VLC player are larger than the ones returned by the SDK. Where did they disappear?

These additional rows or columns contain the metadata of the frame. They are decoded by the SDK and provided separately in form of a FrameMetadata object in thermal frame callbacks.
