DeviceType.h File Reference

Contains an enum representing the different types of Optris thermal cameras. More...

#include <string>
#include <ostream>
#include "otcsdk/Api.h"

Include dependency graph for DeviceType.h:

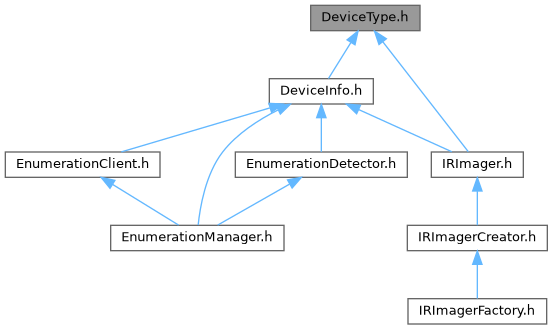

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Namespaces
namespace	optris
	Main SDK namespace.

Enumerations
enum class	optris::DeviceType {   Unknown , PI1 , PI160 , PI2x0 ,   PI160orPI2x0 , PI4x0 , PI4x0I , PI640 ,   PI640I , PI1M , Xi80 , Xi160 ,   Xi400 , Xi410 , Xi410MT , Xi440 ,   Xi640 , Xi1M }
	Represents the different types of Optris thermal cameras.

Functions
OTC_SDK_API bool	optris::is1MDevice (DeviceType type) noexcept
	Returns whether the given device is of the 1M variety.
OTC_SDK_API std::string	optris::toString (DeviceType deviceType) noexcept
	Returns a string representation of the given device type.
OTC_SDK_API std::ostream &	optris::operator<< (std::ostream &out, DeviceType deviceType) noexcept
	Output stream operator for device types.

Detailed Description

Contains an enum representing the different types of Optris thermal cameras.

Author

Optris GmbH Co. KG

Date

2025-01-09
