optris::IRImagerClient Class Reference

Base class for clients observing an IRImager. More...

#include <IRImagerClient.h>

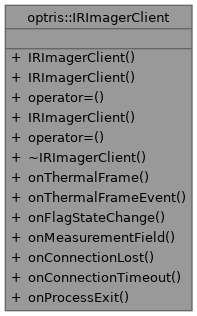

Collaboration diagram for optris::IRImagerClient:

Public Member Functions
	IRImagerClient ()=default
	Constructor.
	IRImagerClient (const IRImagerClient &)=default
	No copy constructor.
IRImagerClient &	operator= (const IRImagerClient &)=default
	No copy assignment.
	IRImagerClient (IRImagerClient &&)=default
	Move constructor.
IRImagerClient &	operator= (IRImagerClient &&)=default
	Move assignment.
virtual	~IRImagerClient ()=default
	Destructor.
virtual void	onThermalFrame (const ThermalFrame &thermal, const FrameMetadata &meta)
	Callback method for thermal frames.
virtual void	onThermalFrameEvent (const ThermalFrame &thermal, const Frame &energy, const FrameMetadata &meta, const std::vector< SnapshotEvent > &events)
	Callback method for thermal frames triggered with a raising edge event on PIF digital input or software trigger.
virtual void	onFlagStateChange (FlagState flagState)
	Callback method for flag state events. The method is called when the flag state changes.
virtual void	onMeasurementField (const MeasurementField &field)
	Callback method for measurement fields. The method is called when the calculation has finished.
virtual void	onConnectionLost ()
	Called when a connection loss is detected.
virtual void	onConnectionTimeout ()
	Called when a connection timeout is detected.
virtual void	onProcessExit ()
	Callback method for synchronizing data. This is the very last method to be called for each raw data set.

Detailed Description

Base class for clients observing an IRImager.

The architecture is following the Observer design pattern. To receive data like thermal frames from your device derive your own class from it and implement the callback methods. After creating an instance of you need to register it with an IRImager object by calling its IRImager::addClient() method.

Member Function Documentation

onConnectionLost()

virtual void optris::IRImagerClient::onConnectionLost ( )

inlinevirtual

Called when a connection loss is detected.

A connection loss can not be recovered. This happens, for example, if the USB connection is interrupted by pulling the plug.

It is up to the client to call IRImager:disconnect(). This gives the client the ability to ensure a graceful disconnect on its end.

onConnectionTimeout()

virtual void optris::IRImagerClient::onConnectionTimeout ( )

inlinevirtual

Called when a connection timeout is detected.

Unlike with connection losses you may recover from a timeout.

Connection timeouts are the only way to detect connection losses with Ethernet devices. This is due to the fact that these devices continuously send UDP packages once they are powered. Besides receiving these packages the SDK has no way of knowing whether the connection is lost.

It is up to the client to call IRImager:disconnect(). This gives the client the ability to ensure a graceful disconnect on its end.

onFlagStateChange()

virtual void optris::IRImagerClient::onFlagStateChange ( FlagState flagState )

inlinevirtual

Callback method for flag state events. The method is called when the flag state changes.

Parameters

[in]

flagState

current flag state.

onMeasurementField()

virtual void optris::IRImagerClient::onMeasurementField ( const MeasurementField & field )

inlinevirtual

Callback method for measurement fields. The method is called when the calculation has finished.

The provided reference will remain valid outside the callback but the data that it is pointing to will be overwritten. Make a copy (C++) or use the clone() method (other languages) if you want to use it outside of the callback.

The reference is const. Thus, you have only read access to the object it is referring to. Attempts to manipulate its content will cause issues.

Parameters

[in]

field

measurement field.

onThermalFrame()

virtual void optris::IRImagerClient::onThermalFrame ( const ThermalFrame & thermal, const FrameMetadata & meta )

inlinevirtual

Callback method for thermal frames.

The provided references will remain valid outside the callback but the data that they are pointing to will be overwritten. Make a copy (C++) or use the clone() method (other languages) if you want to use them outside of
the callback.

The references are const. Thus, you have only read access to the objects they are referring to. Attempts to manipulate their content will cause issues.

This callback will also be triggered during the initial startup calibration phase following a successful device connection. During this time the thermal data is unreliable. You can detect this phase by checking whether the flag state stored in the meta data (FrameMetadata::getFlagState()) is set to Initializing.

Parameters

[in]	thermal	frame.
[in]	meta	additional meta data.

onThermalFrameEvent()

virtual void optris::IRImagerClient::onThermalFrameEvent ( const ThermalFrame & thermal, const Frame & energy, const FrameMetadata & meta, const std::vector< SnapshotEvent > & events )

inlinevirtual

Callback method for thermal frames triggered with a raising edge event on PIF digital input or software trigger.

The provided references will remain valid outside the callback but the data that they are pointing to will be overwritten. Make a copy (C++) or use the clone() method (other languages) if you want to use them outside of
the callback.

The references are const. Thus, you have only read access to the objects they are referring to. Attempts to manipulate their content will cause issues.

For future use.

Parameters

[in]	thermal	frame.
[in]	energy	frame.
[in]	meta	additional meta data for both frames.
[in]	events	snapshot events.

---

The documentation for this class was generated from the following file:

• IRImagerClient.h
