optris::ThermalFrame Class Reference

Encapsulates thermal frame data received from a device. More...

#include <ThermalFrame.h>

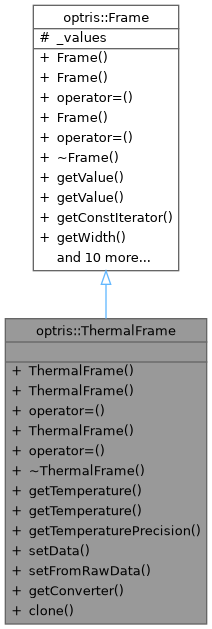

Inheritance diagram for optris::ThermalFrame:

Collaboration diagram for optris::ThermalFrame:

Public Member Functions
OTC_SDK_API	ThermalFrame ()=default
	Constructor.
OTC_SDK_API	ThermalFrame (const ThermalFrame &)=default
	Copy constructor.
OTC_SDK_API ThermalFrame &	operator= (const ThermalFrame &)=default
	Copy assignment.
OTC_SDK_API	ThermalFrame (ThermalFrame &&)=default
	Move constructor.
OTC_SDK_API ThermalFrame &	operator= (ThermalFrame &&)=default
	Move assignment.
OTC_SDK_API	~ThermalFrame () override=default
	Destructor.
float	getTemperature (int index) const
	Returns the temperature in in °C at the given index.
float	getTemperature (int x, int y) const
	Returns the temperature in in °C at the given coordinates.
TemperaturePrecision	getTemperaturePrecision () const noexcept
	Returns the precision of the temperatures stored in the frame.
OTC_SDK_API void	setData (const unsigned short *source, TemperaturePrecision precision)
	Sets the thermal frame data values.
OTC_SDK_API void	setFromRawData (const void *source, TemperaturePrecision precision)
	Sets the thermal frame values from raw data.
TemperatureConverter	getConverter () const noexcept
	Returns the temperature converter.
ThermalFrame	clone () const noexcept
	Returns a complete copy of this frame.
Public Member Functions inherited from optris::Frame
OTC_SDK_API	Frame () noexcept
	Constructor.
OTC_SDK_API	Frame (const Frame &)=default
	Copy constructor.
OTC_SDK_API Frame &	operator= (const Frame &)=default
	Copy assignment.
OTC_SDK_API	Frame (Frame &&)=default
	Move constructor.
OTC_SDK_API Frame &	operator= (Frame &&)=default
	Move assignment.
virtual OTC_SDK_API	~Frame () noexcept=default
	Destructor.
OTC_SDK_API unsigned short	getValue (int index) const noexcept(false)
	Returns the frame data value at the given index.
OTC_SDK_API unsigned short	getValue (int x, int y) const noexcept(false)
	Returns the frame data value at the given coordinates.
OTC_SDK_API ConstFrameIterator	getConstIterator () const noexcept
	Returns an iterator with read access.
OTC_SDK_API int	getWidth () const noexcept
	Returns the width in pixels of the frame.
OTC_SDK_API int	getHeight () const noexcept
	Returns the height in pixel of the frame.
OTC_SDK_API int	getSize () const noexcept
	Returns the overall size in pixels of the frame (width * height).
OTC_SDK_API bool	isEmpty () const noexcept
	Returns whether the frame is empty.
OTC_SDK_API void	clear ()
	Clears the frame data.
OTC_SDK_API void	resize (int width, int height)
	Resizes the frame.
OTC_SDK_API Frame	clone () const noexcept
	Returns a complete copy of this frame.
OTC_SDK_API void	setData (const unsigned short *source)
	Sets the frame data values.
OTC_SDK_API void	setFromRawData (const void *source)
	Sets the frame data values from raw data.
OTC_SDK_API void	copyDataTo (unsigned short *destination, int size) const noexcept
	Copies the internal values to the destination array.
OTC_SDK_API const unsigned short *	getData () const noexcept
	Returns a pointer to the first element of the internal value array.

Additional Inherited Members
Protected Attributes inherited from optris::Frame
std::vector< unsigned short >	_values
	Frame data.

Detailed Description

Encapsulates thermal frame data received from a device.

Member Function Documentation

clone()

ThermalFrame optris::ThermalFrame::clone ( ) const

inlinenoexcept

Returns a complete copy of this frame.

Returns

a complete copy of this frame.

getConverter()

TemperatureConverter optris::ThermalFrame::getConverter ( ) const

inlinenoexcept

Returns the temperature converter.

It can be used to convert and validate the thermal frame values to and from temperatures in °C.

Returns

temperature converter.

getTemperature() [1/2]

float optris::ThermalFrame::getTemperature ( int index ) const

inline

Returns the temperature in in °C at the given index.

Parameters

[in]

index

of the desired frame temperature.

Returns

temperature in in °C at the given index.

Exceptions

SDKException

if index is out of range.

getTemperature() [2/2]

float optris::ThermalFrame::getTemperature ( int x, int y ) const

inline

Returns the temperature in in °C at the given coordinates.

Parameters

[in]	x	coordinate.
[in]	y	coordinate.

Returns

temperature in in °C at the given coordinate.

Exceptions

SDKException

if the coordinates are out of range.

getTemperaturePrecision()

TemperaturePrecision optris::ThermalFrame::getTemperaturePrecision ( ) const

inlinenoexcept

Returns the precision of the temperatures stored in the frame.

Returns

precision of the temperatures stored in the frame.

setData()

OTC_SDK_API void optris::ThermalFrame::setData	(	const unsigned short *	source,
		TemperaturePrecision	precision )

Sets the thermal frame data values.

The provided data may be modified based on the given temperature precision.

Parameters

[in]	source	to set the thermal frame data values from.
[in]	precision	of the temperature values.

setFromRawData()

OTC_SDK_API void optris::ThermalFrame::setFromRawData	(	const void *	source,
		TemperaturePrecision	precision )

Sets the thermal frame values from raw data.

The data from the source is directly copied to the internal memory and is not modified based on the provided temperature precision.

Parameters

[in]	source	to set the thermal frame data from.
[in]	precision	of the thermal values.

---

The documentation for this class was generated from the following file:

• ThermalFrame.h
